remanium Cs+ 1000GMS

Stock Code:
102-403-00
Stock Level:
Normally available in 5 – 10 business days
Quantity:
1 KG
Make an Enquiry
Description

Description

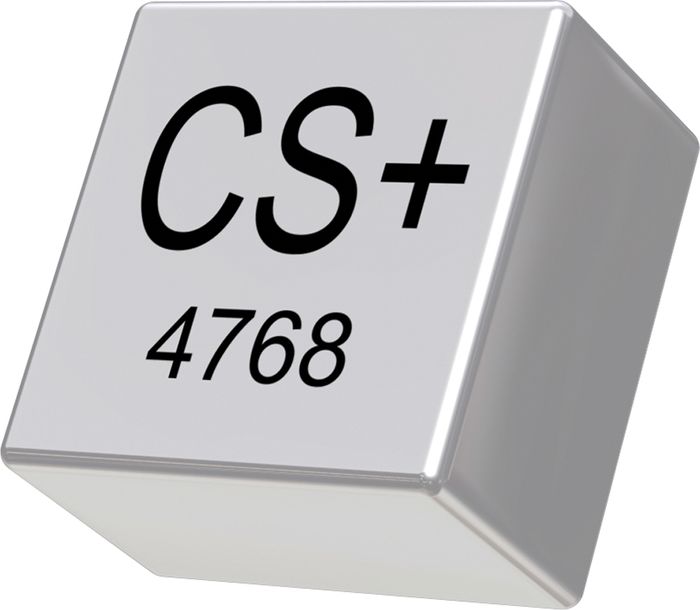

NiCr bonding alloy with outstanding ceramic bond. Square ingots for quick, reliable casting.
Advantages:

  • excellent ceramic bond even after multiple bakes
  • no slow cooling required when baking ceramics
  • beryllium free, biocompatible
  • reliable melting and casting characteristics
  • maximum corrosion resistance
  • excellent soldering and laser welding properties
  • easy polishing and high lustre

Norm: DIN EN ISO 22674 (Type 3)
Indication: implant supported supra-structures

Technical data
Solidus temperature: 1260 ℃ / 2300 ℉
Liquidus temperature: 1350 ℃ / 2462 ℉
Elongation A5: 15 %
Tensile strength Rm: 580 MPa
Modulus of elasticity E: 170 GPa
Weight of casting ingot: 5 g
Hardness: 195 HV 10
0.2% Yield strength Rp0.2: 340 MPa
CTE 25 ℃ - 500 ℃ / 77 ℉ - 932 ℉: 14.0 x 10-6 K-1
Density: 8.2 g/cm3

Alloy composition
Ni: 60 %
Cr: 26 %
Mo: 11 %
Fe: 1 %
Si: 1 %
