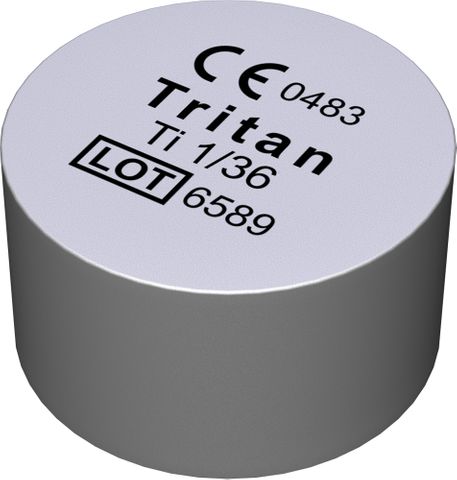

Tritan Casting Metal Ti1 36G

Stock Code:
100-103-50
Stock Level:
In Stock
Quantity:
500 G
Make an Enquiry
Description

Description

min. 99.5 % titanium
Good casting properties in specifically designed casting machines
Dentaurum provides, under the brandname Tritan, pure titanium in ingots of different sizes which can be used in the titanium casting machines.

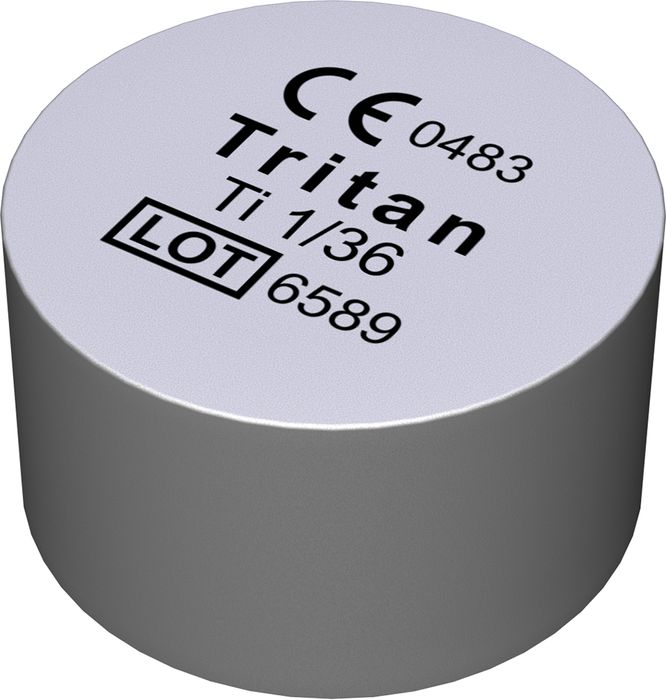

Each ingot is marked with the name Tritan, the purity grade and batch number. Thus, Dentaurum ensures that only DIN Standard Tritan of proper purity grade is used for dental castings.
Advantages:

  • minimal oxygen content. Very good castability
  • 5 different weight units ensure accurate dispensing
  • maximum purity

Height ingot: 14.3 mm
Titanium grade: 1
Norm: DIN EN ISO 22674 (Type 3)
Indication: implant supported supra-structures

Technical data
Elongation A5: 12 %
Melting point: 1668 ℃ / 3034.4 ℉
Tensile strength Rm: 400 MPa
Modulus of elasticity E: 110 GPa
Weight of casting ingot: 36 g
Hardness: 115 HV 10
0.2% Yield strength Rp0.2: 310 MPa
CTE 25 ℃ - 500 ℃ / 77 ℉ - 932 ℉: 9.6 x 10-6 K-1
Density: 4.5 g/cm3

Alloy composition
Ti: 99 %
Fe: <1 %
O: <1 %
