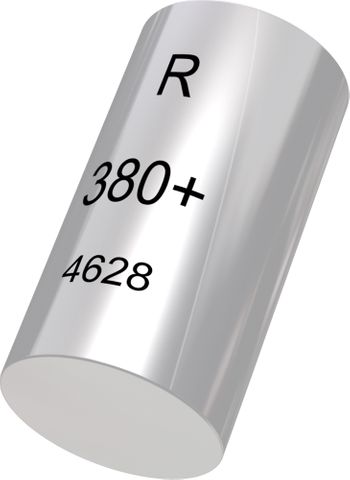

* remanium GM 380+ Alloy

Stock Code:
102-001-10
Stock Level:
In Stock
Quantity:
1 KG
Make an Enquiry

Downloads

Description

Description

Time-tested, spring-hard alloy for all types of partial denture work.
Advantages:

  • further development of the time-tested remanium GM 380
  • the right moment for casting is shown when the melt has a mirror-like shine. No overheating of melt results in smooth and clean castings
  • reduced surface hardness
  • easy preparation and polishing
  • the high elongation at break value promotes activation

Norm: DIN EN ISO 22674 (Type 5)
Indication: cast partial denture and combination work technique for standard constru ctions with high firmness

Technical data
Solidus temperature: 1300 ℃ / 2372 ℉
Liquidus temperature: 1370 ℃ / 2498 ℉
Elongation A5: 6.5 %
Tensile strength Rm: 900 MPa
Modulus of elasticity E: 220 GPa
Weight of casting ingot: 6 g
Hardness: 360 HV 10
0.2% Yield strength Rp0.2: 640 MPa
Density: 8.2 g/cm3

Alloy composition
Co: 64 %
Cr: 29 %
Mo: 4 %
Mn: <1 %
N: <1 %
Si: <1 %
C: <1 %
