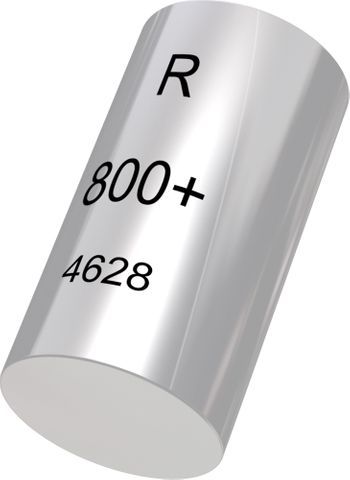

* remanium GM 800+ Super Cast

Stock Code:
102-200-10
Stock Level:
In Stock
Quantity:
1 KG
Make an Enquiry

Downloads

Description

Description

Extra spring-hard universal alloy with a high yield strength for all types of partial denture work.
Advantages:

  • fracture resistant due to excellent physical properties
  • high modulus of elasticity allows delicate but still rigid constructions
  • even less risk of clasp fractures due to increased yield strength
  • the right moment for casting is shown when the melt has a mirror-like shine. No overheating of melt results in smooth and clean castings
  • high-luster surface after electrolytic polishing
  • very good laser welding properties

Norm: DIN EN ISO 22674 (Type 5)
Indication: cast partial denture and combination technique for rigid constructi ons with special high firmness

Technical data
Solidus temperature: 1240 ℃ / 2264 ℉
Liquidus temperature: 1410 ℃ / 2570 ℉
Elongation A5: 4 %
Tensile strength Rm: 960 MPa
Modulus of elasticity E: 230 GPa
Weight of casting ingot: 6 g
Hardness: 370 HV 10
0.2% Yield strength Rp0.2: 720 MPa
Density: 8.2 g/cm3

Alloy composition
Co: 58 %
Cr: 32 %
Mo: 6 %
Si: 1 %
W: 1 %
Mn: <1 %
N: <1 %
C: <1 %
