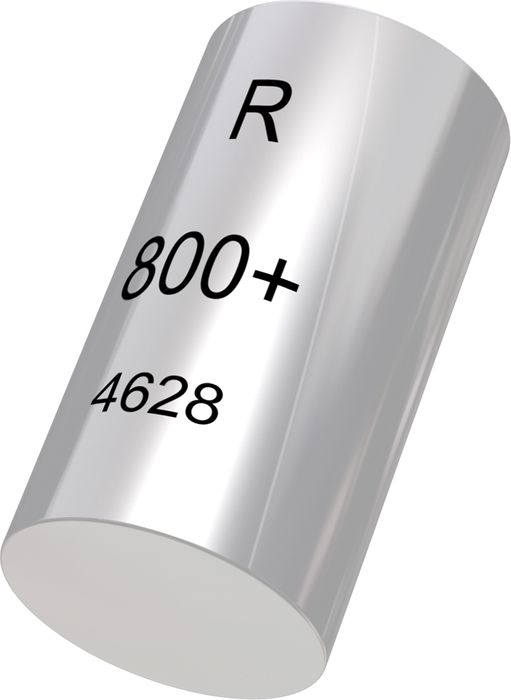

* remanium GM 800+ Super Cast

Stock Code:

102-200-10

Stock Level:

In Stock

Quantity:

1 KG

Make an Enquiry

Downloads

Description

Extra spring-hard universal alloy with a high yield strength for all types of partial denture work.
Advantages:

fracture resistant due to excellent physical properties
high modulus of elasticity allows delicate but still rigid constructions
even less risk of clasp fractures due to increased yield strength
the right moment for casting is shown when the melt has a mirror-like shine. No overheating of melt results in smooth and clean castings
high-luster surface after electrolytic polishing
very good laser welding properties

Norm: DIN EN ISO 22674 (Type 5)
Indication: cast partial denture and combination technique for rigid constructi ons with special high firmness

Technical data
Solidus temperature: 1240 ℃ / 2264 ℉
Liquidus temperature: 1410 ℃ / 2570 ℉
Elongation A₅: 4 %
Tensile strength R_m: 960 MPa
Modulus of elasticity E: 230 GPa
Weight of casting ingot: 6 g
Hardness: 370 HV 10
0.2% Yield strength R_p0.2: 720 MPa
Density: 8.2 g/cm³

Alloy composition
Co: 58 %
Cr: 32 %
Mo: 6 %
Si: 1 %
W: 1 %
Mn: <1 %
N: <1 %
C: <1 %
